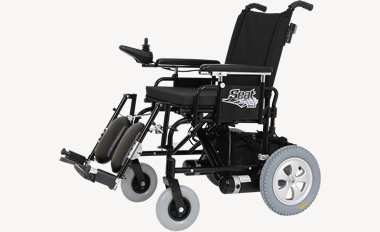

POWER WHEELCHAIR SM2

Motor:
- Direct Current / Permanent Magnet
- Traction by reducer with coupled electromagnetic brake

Batteries:
-Sealed (02 batteries)
-12 volts 45 Ah

Electronics:
- Digital control of power and speed
- Joystick control
- Battery Charger 90 – 240 V ~Full range (Average charge time: 8 to 10 hours)

Transmission:
-Gearbox

Frame :
- Easily foldable for storage or transport
- Height adjustable, removable and retractile armrests
- Height adjustable, retractile, removable, swing-away footrest with side exit

Chassis:
Reinforced steel of 1’ (01 inch)

Brake:
Electromagnetic
Front Wheels
- 8’tires (200x50)
- Nylon wheels with puncture-resistant gray tires
Rear Wheels
- 13’ tires
- Aluminum wheels with  puncture-resistant gray tires.

Dimensions
- Length SM2 L: 110 cm
- Width Model 41: 62 cm
- Width Model 45: 66 cm
- Width Model 48: 69 cm
- Total Height : 94 cm
- Seat-to-floor height: 50 cm (w/o pad) and 55 cm (w/ pad)
- Total weight : 52 kg (chair= 26 Kg; Batteries(02) = 26Kg)

Operation:
- Maximum Speed : 8 km/h
- Theoretical range: 25 km (User weight : 80 kg, on a flat floor with new stationary batteries at full charge)
- Weight Capacity : 130 kg maximum ( on a flat floor with 02 new batteries at full charge)

Optional Items:
- Headrest
- Caregiver’s control

Click here for more details




ANVISA Registration # : 80791830006

Seat Mobile do Brasil, the manufacturer of the power wheelchair SM2 L , guarantees the frame of the equipment free of manufacturing defects for a period of 01(one) year (90 days plus 275 days) from the date of the purchase indicated on the invoice issued by the manufacturer and/or the distributor, or authorized resellers.

.



SEAT MOBILE DO BRASIL

CUSTOMER SERVICE:
Phones: 55 11 2281-6234 / 55 11 3477-3498

Photos for illustrative purposes only.
Products, equipment and accessories subject to technical changes without notice.
