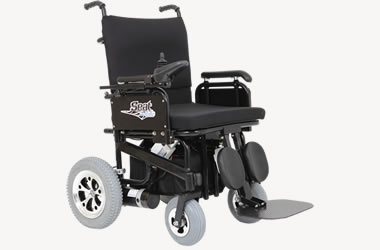

POWER WHEELCHAIR SM3

Motor
- Direct Current / Permanent Magnet

- Traction by reducer with coupled electromagnetic brake

Batteries
-
Sealed (02 batteries)
-
2 X 12  volts 63 Ah

Electronics
- Electronic Control of speed
- Joystick Control
- Battery Charger 90 240 V ~ Full range(Average charge time:  8 to 10 hours)

Transmission:
-
Gearbox motor (motor reducer) of 550 W each

Frame
- Monoblock chassis
- Height adjustable, removable armrests
- Footrest with platform
Rigid Seat
- Backrest in nylon canvas with manual tilt
- Padded cushion  ( foam 5 cm; density 45 )
Calf rest

Chassis:
-Reinforced steel of  1(01 inch)

Brake:
-Electromagnetic

Front Wheels
- 10 Pneumatic tires
- Aluminum wheels with inflatable  gray tires

 Rear Wheels
- 14 Pneumatic tires
- Aluminum wheels with inflatable gray tires
- Training /Support  wheels
- Anti-tip device: diameter 50 mm

Dimensions
- Seat width: See Table of Dimensions below
- Backrest Height : See Table of Dimensions below
- Seat Length : See Table of Dimensions below
- Total Width : 70 / 90 cm;
- Total weight:  104 kg

Operation
- Maximum Speed: 7 km/h
- Range : 25 km (User weight : 100 kg, on a flat floor with new stationary batteries at full charge)
- Weight capacity:  250 kg  maximum (on a flat floor with 02 new batteries at full charge)

OPTIONAL ITEMS
Adjustable Headrest
Electric tilt-in-space
Electric leg angle adjustment
Electric recline angle adjustment

Click here for more details




ANVISA Registration #: 80791830006

Seat Mobile Brasil, the manufacturer of the power wheelchair SM3, guarantees the frame of the equipment free of manufacturing defects for a period of 01(one) year (90 days plus 275 days) from the date of the purchase indicated on the invoice issued by the manufacturer and/or the distributor, or authorized resellers.
